The Manual for the East Coast 12-Meter |
Click on picture for larger image |
Published 1994, Bob
Wells, Author
The title of the book says it
all. Anything and everything you'd ever want to know
about the EC12. History, how to get started, a couple
designs are studied, tips on sailing. This is an
excellent reference book for classical structured
building. 146 pages
Currently avalable as PDF Download |
DropBox Link
Click Here
|
|
|
Optimizing
the EC 12 |
Click on picture for larger image |
Published 1996, Bob
Wells & Larry Robinson, Authors.
A very
technical study of the EC12. Engineering data and
serious design considerations. Not for the faint
hearted. This is a very technical manual related
specifically to a RC model sailboat. 240 pages
Currently avalable as PDF Download |
DropBox Link
Click Here
|
|
|
Making Model Yacht Sails |
|
Click on picture for larger image |
Published 1997, Larry Robinson, Author.
A treatise on
sail design for the model yacht, written around the
EC12. Very advanced.
46 Pages
Currently out of stock - Resupply date is unknown |
Price:
|
|
| EC12
Construction Drawing |
|
Click on picture for larger image |
Building a
Twelve? Curious what goes where? What dimension do I set
the jib fairlead at?
This drawing is based on
upgrades from the original by Mark Rinehart. It contains
templates for decking support, station position for
various deck hardware and suggested numbers for sail
rigs and other useful information. Effective January
2008 a metric scale drawing of the equipment System
Board is included.
Sent USPS First Class
domestic.
A PDF download file is
available for copying a print file to a printing company
for local service.
Download PDF file
|
Price: $15.50
|
|

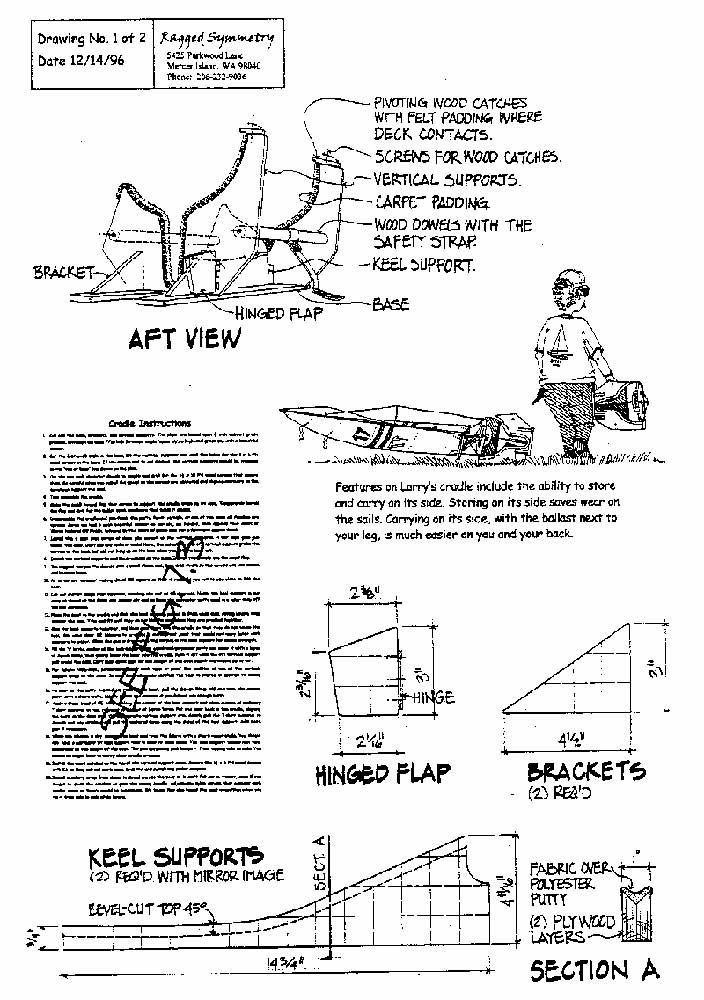

| EC12
Cradle Plan |
|
Click on picture for larger image |
This is the
original cradle design and plans by Larry Robinson. The EC12
hull is sensitive to bumps and scrapes. A proper cradle
will keep your hull "fair" longer.
This two-sheet plan uses ½”
wood sheet templates and instructions to build a cradle.
Sent USPS First Class
domestic
|
Price $15.50
|
|
| EC12

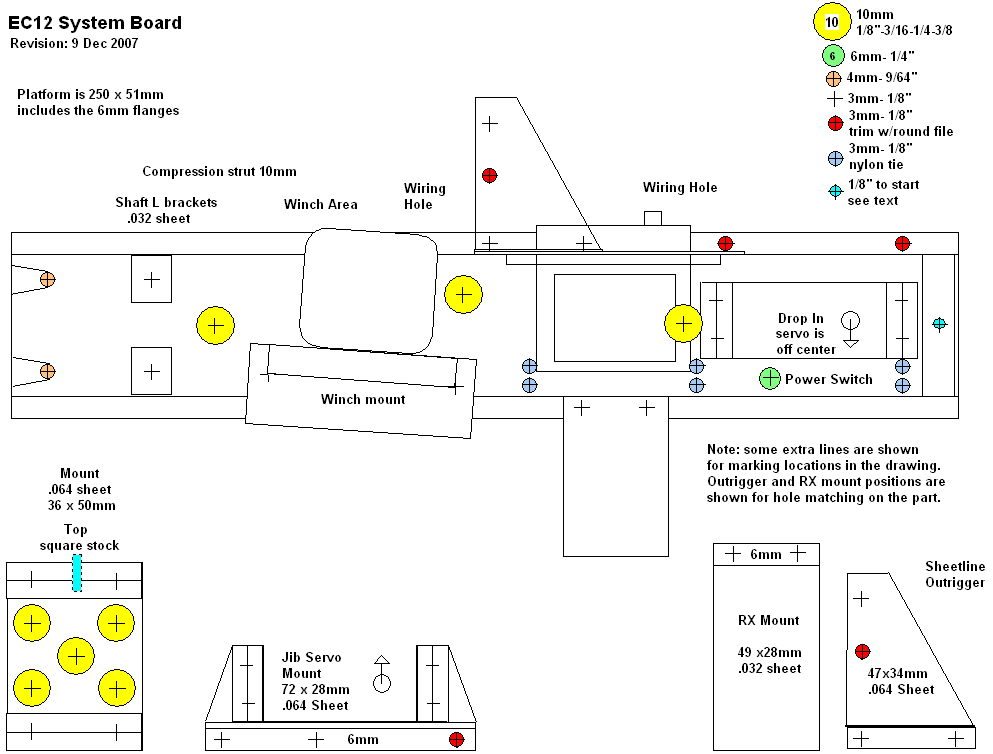

System Board Plan |
|
Click on picture for larger image |
This is a metric scale drawing of the chassis for the
System Board shown on the Building Site with photos of
the process. This and the sheetline additions is all
that is needed for this easily removable unit. This plan
is included with the
purchase of the EC12 Construction Drawing due to no
mailing costs.
Sent USPS First Class
domestic
|
Price $3.00
|
|
|
The prices shown include US Postal delivery within the
United States. |
|
|
|
|
|
Foreign Shipping - additional costs |
|
| |
US
Priority Mail provides the quickest (5-7 days, internationally) at the
lowest cost. The package container will accommodate only
one book and one
folded Cradle Plan or one Drawing.
Order one
"package option" for each book ordered or for the Cradle Plan and
Drawing set ordered.
Make sure you indicate the correct quantity of these containers on the
checkout page |
|
| |
Delivery to Canada |
Price $8.50 each
package
|
| |
Delivery to all
other global locations |
Price $10.50 each
package |
